Product Details
Introduction

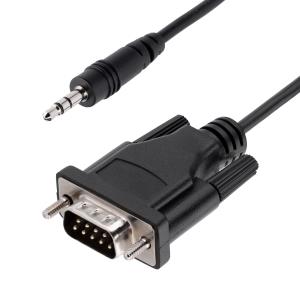

Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based controlThis serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.High Quality ConstructionThe aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.DB9 Serial to 3.5mm PinoutDB9 Pin 3 to 3.5mm TipDB9 Pin 2 to 3.5mm RingDB9 Pin 5 to 3.5mm SleeveThis product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Ports & interfaces
Connector 1
DB-9
Connector 2
3.5mm
Connector 1 gender
Male
Connector 2 gender
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Cable length
1 m
Performance
Product colour
Black
Cable jacket material
Polyvinyl chloride (PVC)
AWG wire size
28
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 60 °C
Relative humidity
30 - 75%
Sustainability
Sustainability compliance
Y
Sustainability certificates
RoHS
Packaging data
Package width
128 mm
Package depth
220 mm
Package height
10 mm
Package weight
23 g
Technical details
Cable diameter
3.5 mm
Logistics data
Products per master (outer) case
200 pc(s)
Master (outer) case width
388 mm
Master (outer) case length
340 mm
Master (outer) case height
310 mm
