Product Details
Introduction

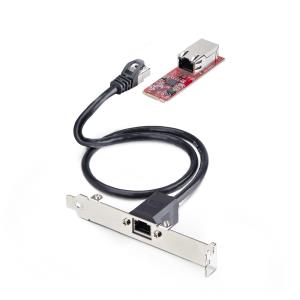

M.2 PCIe network card featuring the IntelŽ I225-V-chip, offering multi-gigabit speeds with support for NBASE-TThis 2.5 GbE M.2 Network Interface Card (NIC) features an Intel I225-V chipset with Intel vProŽ technology, for enhanced performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support of new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding 2.5GBASE-T (802.3bz) compatibility for seamless integration.Increased Network SpeedThe PCIe network card takes advantage of Intel vProŽ technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and online content streaming or uploading while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.Enhance Existing HardwareThe network adapter card connects to an available M.2 2280 PCIe slot (B or M key compatible). Standard and low-profile brackets and a 2ft (60cm) Cat6 adapter cable are included for versatile installation. Compatible with Windows, VMware, and Linux.Advanced FeaturesThis Ethernet card supports the following advanced features: PXE Boot, Wake-on-Lan (WoL), VLAN tagging, 9K jumbo frame, half-duplex, auto-negotiation, and Error Correcting Memory (ECC) for optimal network functionality.The StarTech.com Advantage
Ports & interfaces
Connectivity technology
Wired
Host interface
M.2
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1
PCI version
2.0
Network
Maximum data transfer rate
2500 Mbit/s
Networking standards
IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Cabling technology
NBase-T
Wake-on-LAN ready
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Design
Component for
PC/Server
Product colour
Red
Internal
Yes
Chipset
Intel I225-V
LED indicators
Yes
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Sustainability
Sustainability compliance
Yes
Sustainability certificates
Trade Agreements Act (TAA)
Weight & dimensions
Width
80 mm
Depth
22 mm
Height
15 mm
Weight
15 g
Packaging data
Package width
142 mm
Package depth
170 mm
Package height
30 mm
Package weight
170 g
Packaging content
Mounting brackets included
Yes
Packaging content
CAT6 Cable Adapter
Logistics data
Master (outer) case width
500 mm
Master (outer) case length
380 mm
Master (outer) case height
310 mm
Products per master (outer) case
60 pc(s)
Other features
Quick start guide
Yes
