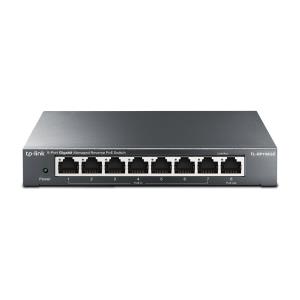

Managed Reverse Poe Switch Tl-rp108ge 8-port Gigabit

Introduction

What This Product Does
The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets-lowering deployment costs and simplifying installation for PoE-capable devices.

Management features

Quality of Service (QoS) support

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Network

Networking standards

IEEE 802.3ab,IEEE 802.3i,IEEE 802.3p,IEEE 802.3q,IEEE 802.3u,IEEE 802.3x

10G support

N

Port mirroring

Y

Full duplex

Y

Half duplex

Y

Broadcast storm control

Y

Rate limiting

Y

Data transmission

Switching capacity

16 Gbit/s

Forwarding rate

11.9 Mpps

MAC address table

4000 entries

Store-and-forward

Y

Static route

Y

Jumbo frames support

Y

Security

IGMP snooping

Y

Loop protection

Y

Design

Product colour

Black

Reset button

Y

LED indicators

Y

Certification

FCC, CE, RoHS

Power

Power supply included

Y

DC input voltage

5 V

Input current

1 A

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Power over Ethernet (PoE) type supported

Passive PoE

Power over Ethernet (PoE) ports quantity

8

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

158 mm

Depth

99.1 mm

Height

25 mm
