Product Details
Introduction

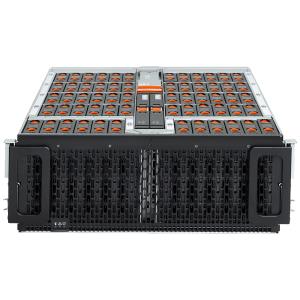

This new platform addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers and resellers/integrators that require dense, shared HDD or hybrid storage. The Ultrastar Data60® Hybrid Storage Platform provides the flexibility to specify the HDD and SSD combinations to balance capacity, performance and cost.
Designed for Big Data
Conventional dense disk shelves frequently suffer from performance degradation due to induced vibration from adjacent drives. Traditional platforms also have cooling challenges as the cooling air passes over successive rows of drives, losing effectiveness as it gets heated up along the airflow path. Developing storage devices and platforms side-by-side, we address these challenges through vertical innovation, a set of technologies developed based on a holistic view of devices, platform, and their interactions. The first two of these patented technologies are IsoVibeT and ArcticFlowT. IsoVibe reduces vibration-induced performance degradation, while ArcticFlow overcomes the cooling issues by introducing cool air into the middle of the platform. Both these technologies contribute to long-term reliability, enabling our five-year limited warranty on the entire platform.
Storage
Storage drives installed
Y
Installed storage drive type
HDD
Number of storage drives installed
60
Total installed storage capacity
8 TB
Supported storage drive types
HDD & SSD
Number of storage drives supported
60
Maximum supported storage capacity
840 TB
Storage drive interface
Serial Attached SCSI (SAS)
Supported storage drive interfaces
SAS, Serial ATA III
Design
Chassis type
Rack (4U)
LED indicators
Y
Cooling
Y
Number of fans
6 fan(s)
Redundant fans support
Y
Performance
Device class
Large Enterprise Business
Power
Power supply unit (PSU) capacity
1600 W
Number of power supply units
2
Redundant power supply (RPS) support
Y
AC input voltage
220 - 240 V
AC input frequency
50/60 Hz
Weight & dimensions
Width
447 mm
Depth
712 mm
Height
175 mm
Disk enclosure weight
79.4 kg
Operational conditions
Operating temperature (T-T)
5 - 40 °C
Storage temperature (T-T)
-40 - 60 °C
