Product Details
Introduction
Flexible port design

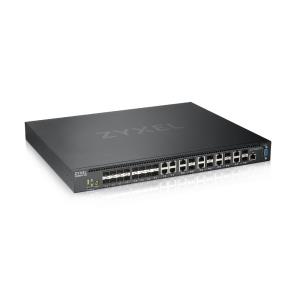

XS3800-28 offers a maximum of 24 10G fiber ports or 12 10G copper ports that are for most flexible adoption to your networks.
Essentials of a core switch
XS3800-28 is suitable for network aggregation such as SMB or campus networks that require low latency and high-density 10G backbone architectures with basic routing capability.
Restore Button
The "Restore" button saves the last workable configuration as the custom default, which allows you to fall back instantly in case of network misconfigurations.
Dual Power
Two PSUs support active-standby power redundancy that triggers backup power supply if the main unit fails.
Designed for the long haul
Quality hardware design is how Zyxel differentiate ourselves from others. We ensure stability and longevity for XS3800-28 for your networks.
Management features
Switch type
Managed
Switch layer
L2+
Quality of Service (QoS) support
Y
Web-based management
Y
Traffic classification
Y
Traffic shaping
Y
ARP inspection
Y
Configuring Location Settings (CLI)
Y
MIB support
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Combo SFP ports quantity
8
SFP+ module slots quantity
16
Fiber optic connector
SFP+
Power connector
AC-in jack
Network
Networking standards
IEEE 802.1D,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3ah,IEEE 802.3an,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3x,IEEE 802.3z
10G support
Y
Copper ethernet cabling technology
10GBASE-T,100BASE-T,1000BASE-T
Port mirroring
Y
IP routing
Y
Policy-based routing
Y
Flow control support
Y
Broadcast storm control
Y
Rate limiting
Y
Spanning tree protocol
Y
Auto-negotiation
Y
VLAN support
Y
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Data transmission
Switching capacity
560 Gbit/s
Forwarding rate
416 Mpps
MAC address table
32 entries
Packet buffer memory
4 MB
Security
DHCP features
DHCP client,DHCP relay,DHCP server
Access Control List (ACL)
Y
IGMP snooping
Y
IGMP proxy
Y
MAC address filtering
Y
SSH/SSL support
Y
Loop protection
Y
BPDU filtering/protection
Y
Authentication
MAC-based authentication
Password protection
Y
Multicast features
Multicast support
Y
Design
Rack mounting
Y
Product colour
Black
Reset button
Y
Performance
Internal memory
8000 MB
Flash memory
64 MB
Mean time between failures (MTBF)
656274.78 h
Power
Power supply included
Y
Redundant power supply (RPS) support
Y
Number of power supply units
2
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 95%
Weight & dimensions
Width
441 mm
Depth
340 mm
Height
44 mm
Weight
4.81 kg
Packaging data
Cables included
AC
Rack mount kit
Y
